| LED chips | 2 * 3570 /5530, 4*5530 / 1860 customized LED module |
| Voltage-in | DC 9-30V |
| Current-start | 2.1A@12V/H1, 2.3A@12V/H4,H13,9004,9007, 3.0A@12V/H7,H8/H11/H16(JP), 9005,9006,9012,D2/D4 |
| Power | 25W/H1, 30W/H4,H13,9004,9007, 36/H7,H8/H11/H16(JP), 9005,9006,9012,D2/D4 |
| Lumen | 1800LM/H1, 1600LM(low),2200LM(high)/H4,H13,9004,9007, 3300LM/H7,H8/H9/H11/H16(JP),9005,9006,9012,D2/D4 |
| Working temperature | -40℃～+80℃ |
| Power efficiency | >87% |
| Beam angle | 270° |
| Color temperature | 6500K |
| CANBUS | CANBUS inside |
| Cooling type | Fan |
| Temperature control | Intelligent temperature control IC (built-in driver) |
| Adapter | 360°adjustable |
| Life span | 30000+ hours |
| Warranty | 18 months |
| Lighting pattern | Low beam / High beam |
For reflector headlight: good high beam; For projector/LENS headlight: no dark area for low beam.

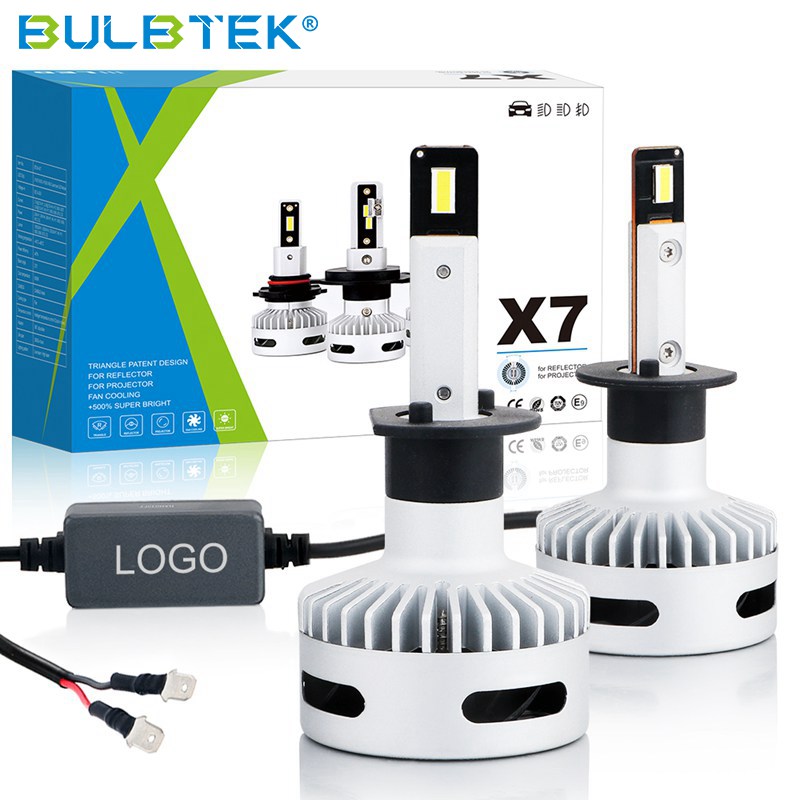

X7 LED Headlight bulb is for both Reflector and Projector(LENS) Headlight Kit Efficient heat conduction & dissipation system:Copper PCB for better heat conduction than aluminum; Red copper heat conduct board for strengthening heat conduction from PCB to aluminum body; Imported hydraulic fan for cooling.
Smart 360°adjustable adapter:
H1, H4, H7, D2/D4: the adapter is fixed by double rubber rings, and is easily rotated in 360°;
H8/H9/H11/H16(JP), 9005, 9006, 9012: there is limited screw for fastening and positioning adapter.
Small size driver: Voltage input: DC 9-30V; CANBUS built-in: solving most canbus problems; Intelligent temperature control IC built-in: the current will drop gradually when the intelligent Temperature Control IC(built-in base) reaches 120°C; Non-polarity; No electromagnetic interference; Size: 52.5*26*16mm; Laser logo is accepted. Thin top body & Small base: Diameter Φ13.5mm of H7, fitting for more vehicles; Diameter Φ8.5mm of H1, fitting for more vehicles; Diameter Φ36mm of base, fitting for more vehicles. Soft box: 201*138*75mm, 2pcs/set, Carton box: 52*44*35 cm, 28sets/carton, Customized is accepted. Welcome OEM and ODM for all BT-AUTO LED headlight bulbs.
